Customized Processing Round Core Pin Injection Molding for Plastic
Mold Parts
Fundamental Information about the Prart:
| Part Name | Customized Processing Round Core Pins And Sleeves for Plastic Mold
Parts
|
| Used Material |
DC53 or SKD61. And materail is choosed according to customer's
requirement. |
| Material Hardness | DC53: HRC 56-58; SKD61: HRC 51-54 It depends on material.
|
Processing Technology
| Internal- external lapping processing and EDM processing |
Accuracy Finish
| 0.005 mm |
| Technical Points | This workpiece is composed of two cylinders, the tolerance of two
cylindrical roundness and concentricity is 0.005 mm, the connection
of the discharge surface and the grinding surface can not have a
step and ensures smoothness.
|
Applicated
| The inserts of plastic mold forming part
|
Our Product Specification
A. Surface: PVD coating/ DLC coating/ Polishing/ Mirror polishing,
etx. we can supply for you. or as your requirement,
B. Material: Stainless steel / aluminum / brass / iron / zinc /
high speed steel / copper, etc.
C. Any other material and product size depends on customers'
demand.
D. Usage: We offer precision mold parts for manufacturing, and
products can be used in many industries such as automotive,
electronic equipment, aviation, medical and so on.
E. Manufacturing process: lath machining, cnc machining, linear
cutting, stamping machining, discharging processing, grinding
processing and so on.
F. Euipement: CNC milling machine, CNC machine, grinder, EDM
machine, WEDM machine and so on.
G.Testing equipment: 2.5D projector, Japan Nikon Height Gages and
other gages, two dimension, hardness meter and so on.
H. Tolerance: 0.005mm
I. Packing: PE film, PE bag, plastic box and carton box;
J. Delivery Time: In generally 5-15 working days, it depends on the
quantity of order and complexity of drawings.
K. Shipment: By land/ by air/ by sea. And we have cooperated with a
number of global international courier , such as TNT, DHL, EMS,
Fedex and so on.

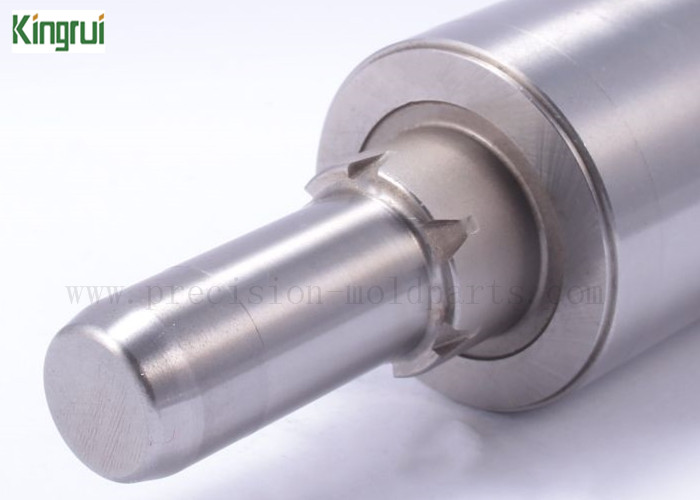

Product Detail Show
If you have any questions, you can contact us anytime.
-------Our team will help you solve problems within 12 hours.
