Mobile / Auto Connector Mold Parts SAARS / Daido Material ISO9001
2008 Certification
Product Descrition
1. Product Application:
These connector mold parts were fabricated for molded pin connector and were designed for use
in a high volume electronics application. It required precision as
well as durability, and required features that would enhance the
manufacturability of the finished parts. They are designed to allow
for frequent change overs during production, while maintaining a
high degree of precision.
2. Processing Equipment:
PartS are manufactured utilizing our precision surface grinding,
and EDM machines which include Mitsubishi EDM, Sodick EDM, and
Charmille EDM.
3. Testing Instruments:
CMM, Nikon Projector, Mitutoyo Digital Caliper, Mitutoyo Digital
Height Gauge, Rockwell Hardness Inspection Instrument, etc
Highlights of Connector mold parts
| Product Description |
These components are used as a mold for pin connectors.
|
| High Volume Tooling Capabilities Applied/Processes |
Mold components were manufactured by KINGRUI utilizing Surface
grinding, EDM, Wire EDM, CNC Graphite Milling. Parts are polished
to meet final molded insert surface finish requirements.
|
| Overall Part Dimensions |
Length: 1.129"
Width: 0.0990" + 0.0000/- 0.0002
Height: 1.5708"
|
| Tightest Tolerances |
+ 0.0000"/- 0.0002"
|
| Material Used |
S-7 Rc 54-56
|
| Material Finish |
EDM matt finish & fine surface finish as required.
|
| In process testing |
Parts are inspected to print specifications and packaged for
inventory or shipment to the customer
|
| Industry for Use |
Electronic Component Industry
|
| Standards Met |
Customer supplied print, 2D CAD Drawing
|
| Delivery/Turnaround Time |
We Deliver Urgent Parts in 24 Hours Depending on the Complexity of
the Drawing
|
Our Service
1. Your inquiry will be replied within 12 hours.
2. Well-trained & experienced sales can reply your inquiries in
English.
3. During working time, E-mail will be replied to you within 1
hours
4. The order will be produced exactly according to order details
and proofed samples. Our quality inspection department will submit
inspection report before shipment.
5. Good after-sale service Quality is our culture,with us, your
money in safe, your buiness in safe , your success is our super
goal. Our honest will touch your heart.Hope we can have long term
bussiness with you in the near future, And you will never regret
choosing us!

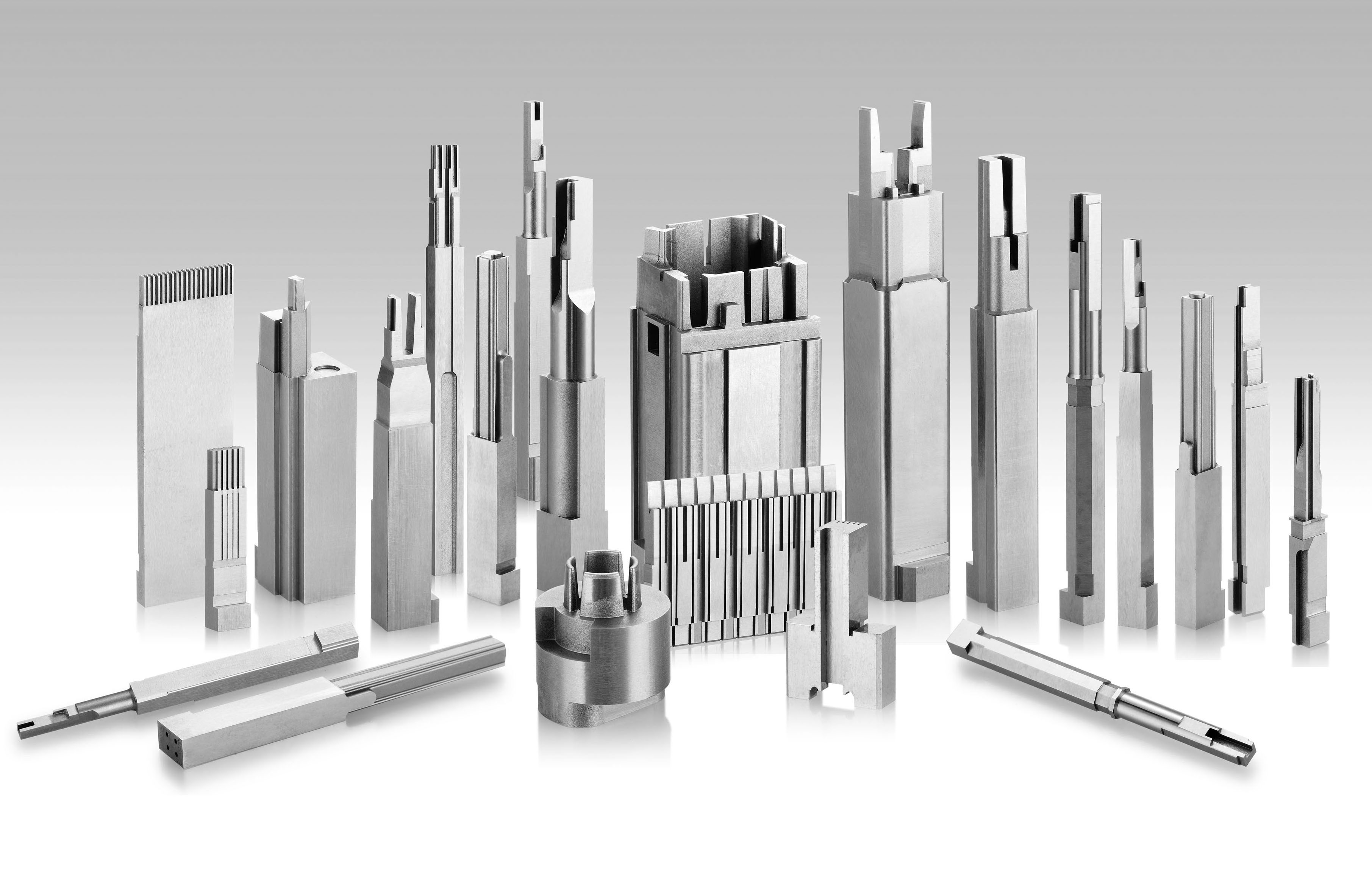

Product Galleray
